Structure scan problem simrad nss7 evo2

Post Options Post Options   Likes (0) Likes(0)   Quote yourmomm Quote  Post ReplyReply Direct Link To This Post Topic: Structure scan problem simrad nss7 evo2
    Posted: 19 Jan 2016 at 8:43pm
yourmomm View Drop Down
Bronze
Bronze


Joined: 19 Aug 2014
Status: Offline
Points: 52

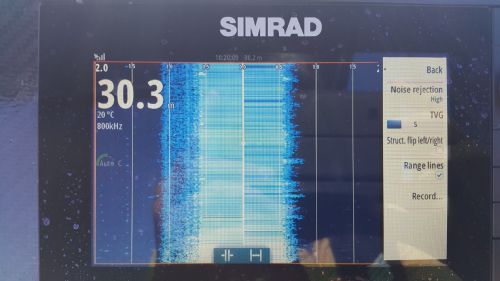

Anyone know what the problem is here? It's like this on all settings...
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote JB Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jan 2016 at 9:30pm
JB View Drop Down
Platinum
Platinum
Avatar

Joined: 16 Sep 2002
Location: Christchurch
Status: Offline
Points: 1629
Just a question? Why have you got it on , noise = high?
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote yourmomm Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jan 2016 at 9:51pm
yourmomm View Drop Down
Bronze
Bronze


Joined: 19 Aug 2014
Status: Offline
Points: 52
Originally posted by JB JB wrote:

Just a question? Why have you got it on , noise = high?

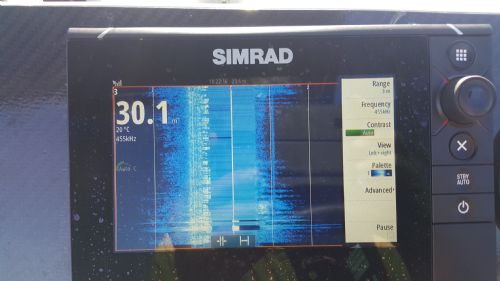

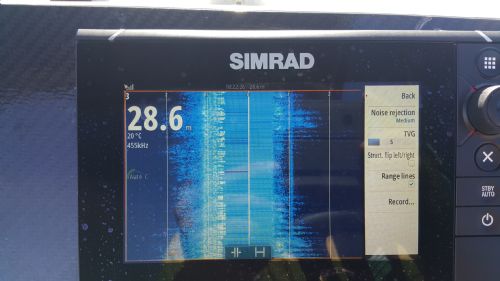

Same on all settings...see photos for noise rejection medium and noise rejection off, below
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote yourmomm Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jan 2016 at 9:53pm
yourmomm View Drop Down
Bronze
Bronze


Joined: 19 Aug 2014
Status: Offline
Points: 52
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote JB Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jan 2016 at 10:10pm
JB View Drop Down
Platinum
Platinum
Avatar

Joined: 16 Sep 2002
Location: Christchurch
Status: Offline
Points: 1629
Ok,
Do you have a chirp transducer for echo running out of evo2 as well?
Has it worked before? If it's worked before and nothing has changed (including transducer position) I'd say you've have a hit on your transducer and its stuffed.
I've quesswd you have tried all connections
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote yourmomm Quote  Post ReplyReply Direct Link To This Post Posted: 19 Jan 2016 at 10:37pm
yourmomm View Drop Down
Bronze
Bronze


Joined: 19 Aug 2014
Status: Offline
Points: 52
Originally posted by JB JB wrote:

Ok,
Do you have a chirp transducer for echo running out of evo2 as well?
Has it worked before? If it's worked before and nothing has changed (including transducer position) I'd say you've have a hit on your transducer and its stuffed.
I've quesswd you have tried all connections


Yep to the chirp echo running as well, although it took me a while to work out you can't run them both, together. That's not running great either, though better than this. And no, I've never been able to get anything better than this. Annoying thing is the transducer is over a year old now, so I doubt burnsco would replace...I've tried connections but I wondered abut interference from other cables? Can't really re-route these easily so was hoping someone might have an idea before I tried...
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Capt Asparagus Quote  Post ReplyReply Direct Link To This Post Posted: 20 Jan 2016 at 12:45am
Capt Asparagus View Drop Down
Titanium
Titanium
Avatar

Joined: 18 Sep 2002
Location: New Zealand
Status: Offline
Points: 13168
Have you tried an update? I know it sounds stupid, but sometime I have found these units build up a bug, and it is only fixed by updating the software in the sounder.
Go to the simradsailing site, download the latest updates for your unit onto a clean micro SD, and load into your unit.
Failing that, give the guys at navico in auckland a call.
It is only my overwhelming natural humility that mars my perfection.

Captain Asparagus, Superhero, Adventurer.
Back to Top
