Sea Strike 18 Build Thread

Page  123 10>
Post Options Post Options   Likes (0) Likes(0)   Quote MarkE Quote  Post ReplyReply Direct Link To This Post Topic: Sea Strike 18 Build Thread
    Posted: 03 Feb 2013 at 7:48pm
MarkE View Drop Down
Platinum
Platinum


Joined: 02 Feb 2007
Location: Mudfish Central
Status: Offline
Points: 2890
Seems there may be a little interest in this build so thought i'd do a build thread.
Boat is an 18 ft Centre Console, glass/ply/glass composite construction using the stitch and tape method.

Website link here - http://www.bowdidgemarinedesigns.com/Bowdidge_Marine_Designs_1/Sea_Strike_18.html

Received Plans last week - very impressed with the detail and easy to follow instructions.



Oooh, I very excite

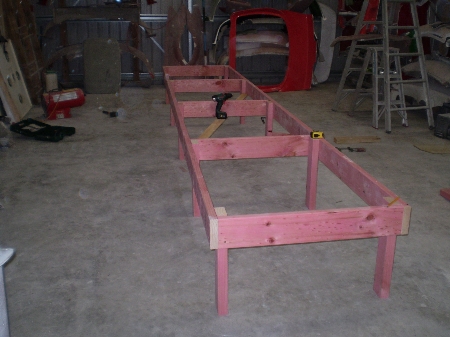

Strongback assembled.

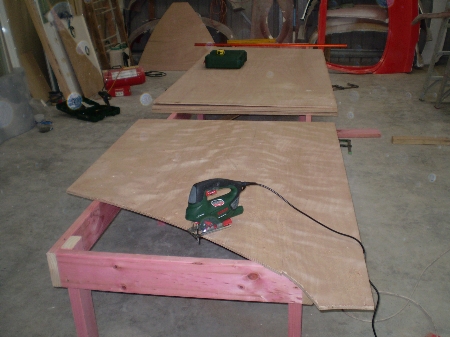

Bulkheads being marked out and cut.



The Help - good paper weight

Sea Strike 18' Centre Console - Under Construction....Build Thread here
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote otdrmn Quote  Post ReplyReply Direct Link To This Post Posted: 04 Feb 2013 at 8:01pm
otdrmn View Drop Down
Platinum
Platinum


Joined: 20 Dec 2004
Location: Sth Head
Status: Offline
Points: 2245
Cool looking forward to this.
Arent cats helpful.
The 4 R's ~ Rods, Reels, Rifles, Rooting
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Time_Bandit Quote  Post ReplyReply Direct Link To This Post Posted: 04 Feb 2013 at 8:46pm
Time_Bandit View Drop Down
Platinum
Platinum
Avatar

Joined: 19 Mar 2012
Status: Offline
Points: 2116
whats your time frame for the build
“Be yourself; everyone else is already taken.”

Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote yknot Quote  Post ReplyReply Direct Link To This Post Posted: 09 Feb 2013 at 5:58pm
yknot View Drop Down
Platinum
Platinum
Avatar

Joined: 28 Jan 2012
Status: Offline
Points: 1408
Will be an interesting thread, I am looking to make supervise my young fellas make one of their smaller models over the winter period. Have you done a buget costing for your build?
Those that say it can't be done are being overtaken by those doing it.
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote MarkE Quote  Post ReplyReply Direct Link To This Post Posted: 09 Feb 2013 at 7:40pm
MarkE View Drop Down
Platinum
Platinum


Joined: 02 Feb 2007
Location: Mudfish Central
Status: Offline
Points: 2890
Glassed up hull should be around $5500 in materials (ply, resin, glass, fairing/filler powders). Havent looked into paint costs yet.
Progress has been slow as ive been waiting on a ply order - its all go now though so should have most of the bulkheads cut out by the end of this week.
Sea Strike 18' Centre Console - Under Construction....Build Thread here
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote otdrmn Quote  Post ReplyReply Direct Link To This Post Posted: 10 Feb 2013 at 7:06am
otdrmn View Drop Down
Platinum
Platinum


Joined: 20 Dec 2004
Location: Sth Head
Status: Offline
Points: 2245
#2 you have email (pics 28meg's and a excel spread showing costings for butrot)
The 4 R's ~ Rods, Reels, Rifles, Rooting
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote MarkE Quote  Post ReplyReply Direct Link To This Post Posted: 10 Feb 2013 at 9:12pm
MarkE View Drop Down
Platinum
Platinum


Joined: 02 Feb 2007
Location: Mudfish Central
Status: Offline
Points: 2890
Originally posted by otdrmn otdrmn wrote:

#2 you have email (pics 28meg's and a excel spread showing costings for butrot)


Do you mean me???
Sea Strike 18' Centre Console - Under Construction....Build Thread here
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote DezzyTooToo Quote  Post ReplyReply Direct Link To This Post Posted: 10 Feb 2013 at 9:16pm
DezzyTooToo View Drop Down
Silver
Silver


Joined: 23 Feb 2012
Location: Zimbabwe
Status: Offline
Points: 439
This should be a good thread , I`ll be watching with a keen eye !
Like most people here , always thought about building a boat .
I love cats ......... I just can`t eat a whole one .
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote otdrmn Quote  Post ReplyReply Direct Link To This Post Posted: 11 Feb 2013 at 1:31pm
otdrmn View Drop Down
Platinum
Platinum


Joined: 20 Dec 2004
Location: Sth Head
Status: Offline
Points: 2245
Originally posted by MarkE MarkE wrote:

Originally posted by otdrmn otdrmn wrote:

#2 you have email (pics 28meg's and a excel spread showing costings for butrot)


Do you mean me???
Nah Bro, YKNOT...
The 4 R's ~ Rods, Reels, Rifles, Rooting
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote ManCave Quote  Post ReplyReply Direct Link To This Post Posted: 11 Feb 2013 at 2:54pm
ManCave View Drop Down
Bronze
Bronze
Avatar

Joined: 30 Sep 2012
Location: Maraetai
Status: Offline
Points: 29
Excellent, looking forward to watching progress.  Lots of detailed pics please!
The trout is a harsh mistress.
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote yknot Quote  Post ReplyReply Direct Link To This Post Posted: 11 Feb 2013 at 9:23pm
yknot View Drop Down
Platinum
Platinum
Avatar

Joined: 28 Jan 2012
Status: Offline
Points: 1408

Were the plans which came full size, and easy to follow?

Those that say it can't be done are being overtaken by those doing it.
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote MarkE Quote  Post ReplyReply Direct Link To This Post Posted: 12 Feb 2013 at 9:05am
MarkE View Drop Down
Platinum
Platinum


Joined: 02 Feb 2007
Location: Mudfish Central
Status: Offline
Points: 2890
Not full size but easy to follow. Most cutting lines are straight also so marking out isn't to difficult.
Sea Strike 18' Centre Console - Under Construction....Build Thread here
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote MarkE Quote  Post ReplyReply Direct Link To This Post Posted: 16 Feb 2013 at 7:50pm
MarkE View Drop Down
Platinum
Platinum


Joined: 02 Feb 2007
Location: Mudfish Central
Status: Offline
Points: 2890
Right, All bulkheads and transom have been cut out. Longitudinals have also been cut out and are ready to be butt joined together. Will mark and cut sides and bottom plates this week.
Not a lot to see yet but will try and get some pics of progress tomorrow.
Sea Strike 18' Centre Console - Under Construction....Build Thread here
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote MarkE Quote  Post ReplyReply Direct Link To This Post Posted: 17 Feb 2013 at 10:11pm
MarkE View Drop Down
Platinum
Platinum


Joined: 02 Feb 2007
Location: Mudfish Central
Status: Offline
Points: 2890
A few pics -

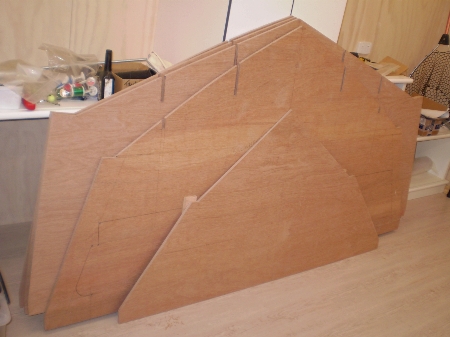

Bulkheads 1 - 5

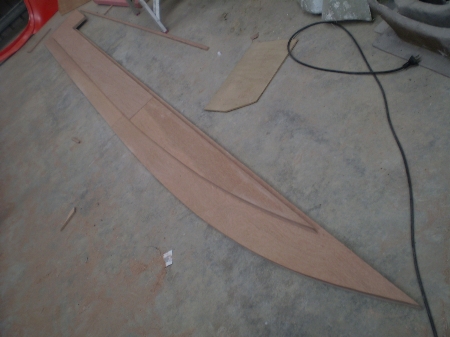

Longitudinals ready for joining

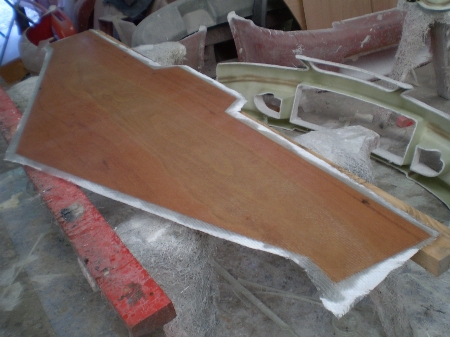

Transom glassed up with 450g Double Bias

Sea Strike 18' Centre Console - Under Construction....Build Thread here
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Don18025 Quote  Post ReplyReply Direct Link To This Post Posted: 18 Feb 2013 at 8:32am
Don18025 View Drop Down
Platinum
Platinum
Avatar

Joined: 12 Dec 2006
Location: New Zealand
Status: Offline
Points: 2254
You are rolling Mark. Keep it up.
Following this story with interest.
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote J-D Quote  Post ReplyReply Direct Link To This Post Posted: 18 Feb 2013 at 8:49am
J-D View Drop Down
Platinum
Platinum
Avatar

Joined: 13 Feb 2008
Location: New Zealand
Status: Offline
Points: 1528
Looking forward to following this with great interest. Who are the plans from and what model?

Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Tipper Quote  Post ReplyReply Direct Link To This Post Posted: 18 Feb 2013 at 8:56am
Tipper View Drop Down
Platinum
Platinum
Avatar

Joined: 08 May 2011
Location: Hauraki Gulf
Status: Offline
Points: 1029
Originally posted by D J D J wrote:

Looking forward to following this with great interest. Who are the plans from and what model?
Its in the Thread title  ....
Please make sure you have the full 'witty' Plug-In installed on your Internet Browser, or the default 'half-witty' output may affect your profile
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote MarkE Quote  Post ReplyReply Direct Link To This Post Posted: 18 Feb 2013 at 10:21am
MarkE View Drop Down
Platinum
Platinum


Joined: 02 Feb 2007
Location: Mudfish Central
Status: Offline
Points: 2890
Thanks Tipper, have added that link into the original thread post also.
Sea Strike 18' Centre Console - Under Construction....Build Thread here
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Zambezi Quote  Post ReplyReply Direct Link To This Post Posted: 18 Feb 2013 at 10:41am
Zambezi View Drop Down
Titanium
Titanium
Avatar

Joined: 10 Dec 2006
Location: Djibouti
Status: Offline
Points: 4612
Just got a place that has a 3 car garage and we only have one car, so watching this thread closley, building on off my own now really on the cards

A man’s comfort in life can be measured by the quality of the toilet paper he uses to wipe his arse.
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Jet_ski_fisher Quote  Post ReplyReply Direct Link To This Post Posted: 18 Feb 2013 at 11:45am
Jet_ski_fisher View Drop Down
Titanium
Titanium
Avatar

Joined: 08 Dec 2008
Location: Whakatane
Status: Offline
Points: 10
Silly Question but why is one side longer than the other on the transom?
