Topic: Sea Strike 18 Build Thread
Posted By: MarkE
Subject: Sea Strike 18 Build Thread
Date Posted: 03 Feb 2013 at 7:48pm
Seems there may be a little interest in this build so thought i'd do a build thread.
Boat is an 18 ft Centre Console, glass/ply/glass composite construction using the stitch and tape method.

Website link here - http://www.bowdidgemarinedesigns.com/Bowdidge_Marine_Designs_1/Sea_Strike_18.html

Received Plans last week - very impressed with the detail and easy to follow instructions.



Oooh, I very excite



Strongback assembled.



Bulkheads being marked out and cut.



The Help - good paper weight



-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here



Replies:
Posted By: otdrmn
Date Posted: 04 Feb 2013 at 8:01pm
Cool looking forward to this.
Arent cats helpful.


-------------
The 4 R's ~ Rods, Reels, Rifles, Rooting


Posted By: Time_Bandit
Date Posted: 04 Feb 2013 at 8:46pm
whats your time frame for the build

-------------
“Be yourself; everyone else is already taken.”



Posted By: yknot
Date Posted: 09 Feb 2013 at 5:58pm
Will be an interesting thread, I am looking to make supervise my young fellas make one of their smaller models over the winter period. Have you done a buget costing for your build?

-------------
Those that say it can't be done are being overtaken by those doing it.


Posted By: MarkE
Date Posted: 09 Feb 2013 at 7:40pm
Glassed up hull should be around $5500 in materials (ply, resin, glass, fairing/filler powders). Havent looked into paint costs yet.
Progress has been slow as ive been waiting on a ply order - its all go now though so should have most of the bulkheads cut out by the end of this week.

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: otdrmn
Date Posted: 10 Feb 2013 at 7:06am
#2 you have email (pics 28meg's and a excel spread showing costings for butrot)

-------------
The 4 R's ~ Rods, Reels, Rifles, Rooting


Posted By: MarkE
Date Posted: 10 Feb 2013 at 9:12pm
Originally posted by otdrmn otdrmn wrote:

#2 you have email (pics 28meg's and a excel spread showing costings for butrot)


Do you mean me???

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: DezzyTooToo
Date Posted: 10 Feb 2013 at 9:16pm
This should be a good thread , I`ll be watching with a keen eye !
Like most people here , always thought about building a boat .

-------------
I love cats ......... I just can`t eat a whole one .


Posted By: otdrmn
Date Posted: 11 Feb 2013 at 1:31pm
Originally posted by MarkE MarkE wrote:

Originally posted by otdrmn otdrmn wrote:

#2 you have email (pics 28meg's and a excel spread showing costings for butrot)


Do you mean me???
Nah Bro, YKNOT...

-------------
The 4 R's ~ Rods, Reels, Rifles, Rooting


Posted By: ManCave
Date Posted: 11 Feb 2013 at 2:54pm
Excellent, looking forward to watching progress.  Lots of detailed pics please!

-------------
The trout is a harsh mistress.


Posted By: yknot
Date Posted: 11 Feb 2013 at 9:23pm

Were the plans which came full size, and easy to follow?



-------------
Those that say it can't be done are being overtaken by those doing it.


Posted By: MarkE
Date Posted: 12 Feb 2013 at 9:05am
Not full size but easy to follow. Most cutting lines are straight also so marking out isn't to difficult.

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: MarkE
Date Posted: 16 Feb 2013 at 7:50pm
Right, All bulkheads and transom have been cut out. Longitudinals have also been cut out and are ready to be butt joined together. Will mark and cut sides and bottom plates this week.
Not a lot to see yet but will try and get some pics of progress tomorrow.

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: MarkE
Date Posted: 17 Feb 2013 at 10:11pm
A few pics -

Bulkheads 1 - 5



Longitudinals ready for joining



Transom glassed up with 450g Double Bias



-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Don18025
Date Posted: 18 Feb 2013 at 8:32am
You are rolling Mark. Keep it up.
Following this story with interest.


Posted By: J-D
Date Posted: 18 Feb 2013 at 8:49am
Looking forward to following this with great interest. Who are the plans from and what model?



Posted By: Tipper
Date Posted: 18 Feb 2013 at 8:56am
Originally posted by D J D J wrote:

Looking forward to following this with great interest. Who are the plans from and what model?
Its in the Thread title  ....
http://www.bowdidgemarinedesigns.com/Bowdidge_Marine_Designs_1/Sea_Strike_18.html" rel="nofollow - http://www.bowdidgemarinedesigns.com/Bowdidge_Marine_Designs_1/Sea_Strike_18.html


-------------
Please make sure you have the full 'witty' Plug-In installed on your Internet Browser, or the default 'half-witty' output may affect your profile


Posted By: MarkE
Date Posted: 18 Feb 2013 at 10:21am
Thanks Tipper, have added that link into the original thread post also.

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Zambezi
Date Posted: 18 Feb 2013 at 10:41am
Just got a place that has a 3 car garage and we only have one car, so watching this thread closley, building on off my own now really on the cards



-------------
A man’s comfort in life can be measured by the quality of the toilet paper he uses to wipe his arse.


Posted By: Jet_ski_fisher
Date Posted: 18 Feb 2013 at 11:45am
Silly Question but why is one side longer than the other on the transom?

-------------
http://www.legasea.co.nz" rel="nofollow">
MH... Catch measure release...<*))))<


Posted By: Tipper
Date Posted: 18 Feb 2013 at 11:47am
Originally posted by Built_to_fish Built_to_fish wrote:

Silly Question but why is one side longer than the other on the transom?

I think its thisLOL  !  http://en.wikipedia.org/wiki/Parallax" rel="nofollow - http://en.wikipedia.org/wiki/Parallax   optical illusion


-------------
Please make sure you have the full 'witty' Plug-In installed on your Internet Browser, or the default 'half-witty' output may affect your profile


Posted By: MarkE
Date Posted: 18 Feb 2013 at 12:06pm
Originally posted by Built_to_fish Built_to_fish wrote:

Silly Question but why is one side longer than the other on the transom?


not longer, just weird camera angle

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Jet_ski_fisher
Date Posted: 18 Feb 2013 at 12:26pm
ahhh i see ok to much ****ing made me half blind i guess. all good :)

-------------
http://www.legasea.co.nz" rel="nofollow">
MH... Catch measure release...<*))))<


Posted By: MarkE
Date Posted: 18 Feb 2013 at 5:05pm

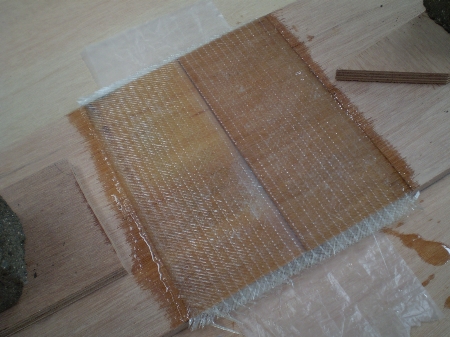

Started glassing the outer longitudinal joins this afternoon. got one side done on each, will flip and do the other side tomorrow.



-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: MarkE
Date Posted: 03 Mar 2013 at 10:38pm

Not a lot done lately, work has been pretty hectic . Managed to get the longitudinals and bottom plates finished though, should start to look like a boat soon :)






-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: MarkE
Date Posted: 06 Mar 2013 at 7:16pm

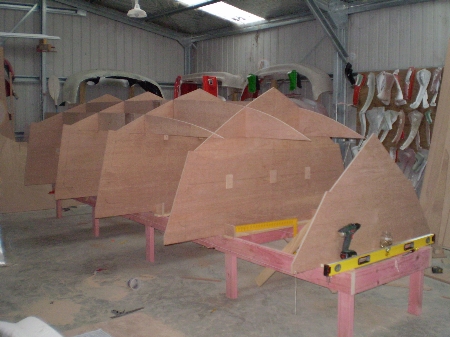

Bulkheads and longitudinals setup on strongback....



-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: yknot
Date Posted: 06 Mar 2013 at 9:32pm
Looking good and starting to take shape, no doubt work is getting in the way of your boat building.

-------------
Those that say it can't be done are being overtaken by those doing it.


Posted By: MarkE
Date Posted: 07 Mar 2013 at 9:58am
Yep, actually starting to get an idea of size now too. Not looking forward to fairing lol

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Falco
Date Posted: 07 Mar 2013 at 10:00am
Sweet Mark,
If you need any more timber for working on come and see me - I have a few bits you are welcome to.


-------------
as dead as dead is


Posted By: Jet_ski_fisher
Date Posted: 07 Mar 2013 at 10:07am
Bulkheads and longitudinals are they going to be glassed over.

-------------
http://www.legasea.co.nz" rel="nofollow">
MH... Catch measure release...<*))))<


Posted By: MarkE
Date Posted: 07 Mar 2013 at 9:17pm
Originally posted by falco falco wrote:

Sweet Mark,
If you need any more timber for working on come and see me - I have a few bits you are welcome to.


Thanks Andrew, will keep that in mind. Think I have most of it sorted though :)

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: MarkE
Date Posted: 07 Mar 2013 at 9:18pm
Originally posted by Built_to_fish Built_to_fish wrote:

<span style=": rgb251, 251, 253;">Bulkheads and longitudinals a</span>re they going to be glassed over.


Yep, boat is glassed inside and out.

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Time_Bandit
Date Posted: 07 Mar 2013 at 9:26pm
fairing, one thing i dont miss about boatbuilding lol

-------------
“Be yourself; everyone else is already taken.”



Posted By: MarkE
Date Posted: 10 Mar 2013 at 9:59pm

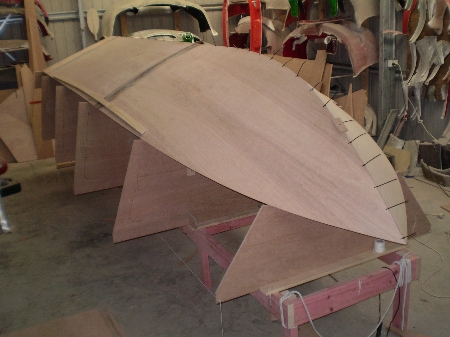

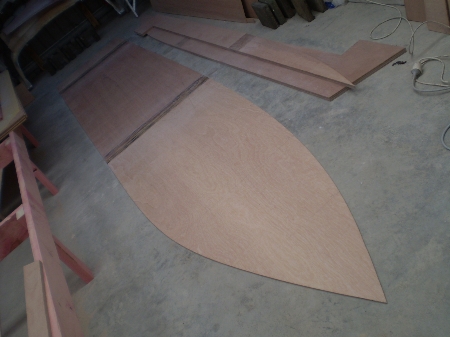

Managed to get the bottom plates on today.



-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: DezzyTooToo
Date Posted: 11 Mar 2013 at 10:45pm
Hey MarkE ,
what type of resigns are you going to use , 2:1 epoxy stuff like "Bote` coat" or normal fiberglassing resigns ?

Also are you going with that drop in transom design thing on the stern ?
Looks like it`s for tilting the engine back , maybe move it forward a bit and make it solid , with live bait tanks !



-------------
I love cats ......... I just can`t eat a whole one .


Posted By: MarkE
Date Posted: 11 Mar 2013 at 11:09pm
Originally posted by DezzyTooToo DezzyTooToo wrote:


Hey MarkE ,
what type of resigns are you going to use , 2:1 epoxy stuff like "Bote` coat" or normal fiberglassing resigns ?

Also are you going with that drop in transom design thing on the stern ?
Looks like it`s for tilting the engine back , maybe move it forward a bit and make it solid , with live bait tanks !



Not quite sure what you mean by 'drop in transom' ? .....Theres a heap of underfloor storage available for kill/livebait tanks.

Im using West System Epoxy resin 5:1

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: DezzyTooToo
Date Posted: 11 Mar 2013 at 11:22pm
Looks like a thin bit right in front of the engine . I presume you remove it so the engine can tilt all the way up ?
Geez I better have another look at that site and make sure I`m got the same boat in mind !!
Wouldn`t be the first time I`ve cocked things up !


-------------
I love cats ......... I just can`t eat a whole one .


Posted By: DezzyTooToo
Date Posted: 11 Mar 2013 at 11:28pm
Oh by transom I mean the bulkhead across the stern , where you stick the baitboard .

-------------
I love cats ......... I just can`t eat a whole one .


Posted By: DezzyTooToo
Date Posted: 11 Mar 2013 at 11:56pm

So it looks like a perment thin bit , just to give clearance for the engine ?



-------------
I love cats ......... I just can`t eat a whole one .


Posted By: MarkE
Date Posted: 12 Mar 2013 at 12:06am
Nothing needs removing to tilt the engine up as far as im aware - youre not talking about the transom door/Washboard are you?

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: DezzyTooToo
Date Posted: 12 Mar 2013 at 12:23am
I think i`ll have to wait and see when you get to that part of the build , ..... this wekend ? Big smile

-------------
I love cats ......... I just can`t eat a whole one .


Posted By: MarkE
Date Posted: 20 Mar 2013 at 7:39pm

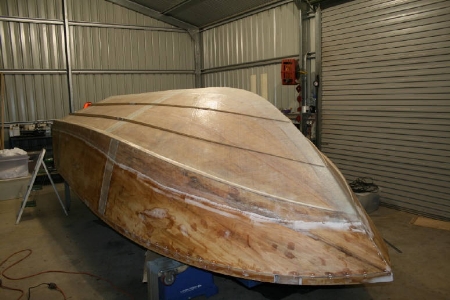

Got a little bit more done over the last few days. Topsides fitted and Chine flats ready for trimming up.



-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Don18025
Date Posted: 20 Mar 2013 at 9:46pm
That vessel is coming along like a rocket.
But I can see a lot of sanding soon!
Great effort to date and I like it....


Posted By: MarkE
Date Posted: 21 Mar 2013 at 12:33pm
Yep, lots and lots of sanding ahead :( Going to get the panels as fair as possible before the glass goes on - should save a bit of work later on.

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Zambezi
Date Posted: 21 Mar 2013 at 12:41pm
Are you using plastic cable ties? or copper wire?


-------------
A man’s comfort in life can be measured by the quality of the toilet paper he uses to wipe his arse.


Posted By: MarkE
Date Posted: 21 Mar 2013 at 1:04pm
Cable ties. Used wire on my last boat - these are so much easier on the hands though lol

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Zambezi
Date Posted: 01 Apr 2013 at 10:16pm
43434tyghrefd

-------------
A man’s comfort in life can be measured by the quality of the toilet paper he uses to wipe his arse.


Posted By: Norseman
Date Posted: 02 Apr 2013 at 7:34am
Starting to look like a boat now, keep it up!

-------------
"Nothing is so strong as gentleness, nothing so gentle as real strength." St. Francis de Sales


Posted By: Zambezi
Date Posted: 02 Apr 2013 at 7:38am
Originally posted by Zambezi Zambezi wrote:

43434tyghrefd


Wtf, I have no idea how or why I typed that, wasn't drinking....

Must have been the cat lol

Any updates on the boat?


-------------
A man’s comfort in life can be measured by the quality of the toilet paper he uses to wipe his arse.


Posted By: Don18025
Date Posted: 03 Apr 2013 at 5:32pm
Mark is still trying to translate your code Zambesi.

I thought the numbers refererred to the distances between cable ties....but then got stuck on the letters. I thought they could be Welsh, but then your name is Zambesi????



Posted By: Zambezi
Date Posted: 03 Apr 2013 at 5:37pm
I think the cat posted it after I left the thread open lol


-------------
A man’s comfort in life can be measured by the quality of the toilet paper he uses to wipe his arse.


Posted By: MarkE
Date Posted: 03 Apr 2013 at 7:28pm
Not a lot to report guys, chine flats trimmed and fitted now. Have also filled most of the screw holes.
Just need to fit the shear planks now then its pretty much ready to glass :)







-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: J-D
Date Posted: 06 Apr 2013 at 11:23pm
Looking the business Mark!!! Loving this post Thumbs Up


Posted By: Zambezi
Date Posted: 12 Apr 2013 at 9:17am
Looking good, any more since then?


-------------
A man’s comfort in life can be measured by the quality of the toilet paper he uses to wipe his arse.


Posted By: Telecaster
Date Posted: 12 Apr 2013 at 9:34am
Looks great, that hard chine should keep the spray down as well.

Are you going to finish it as a centre console? Or cabin?

What sort of glue are you using to tack everything together? Is it a commercial glue or are you adding something (wood flour or similar) to epoxy? Will you tape the seams than cloth over the whole hull?

Sorry for all the questions, I want to build one some day soon. Need to send the missus back to work first.


Posted By: yknot
Date Posted: 14 Apr 2013 at 8:11pm
Keep the pics comming, looking great. I have just placed order for my plans so they should be here soon.

-------------
Those that say it can't be done are being overtaken by those doing it.


Posted By: J-D
Date Posted: 15 Apr 2013 at 4:32pm
Originally posted by yknot yknot wrote:

Keep the pics comming, looking great. I have just placed order for my plans so they should be here soon.
 Clap


Posted By: Tagit
Date Posted: 15 Apr 2013 at 5:53pm
Looking very fine Mark. Love to watch these projects. Are the sheets secured to the bulkheads and longitudinals with any temporary fastenings (couldn't spot any in the pics) or are they just glued?


Posted By: MarkE
Date Posted: 15 Apr 2013 at 9:43pm

Slowly chipping away still. Have finally managed to fit the shear planks, currently inside the hull finger filleting epoxy to join bulkheads and longitudinals to the bottom plates and topsides - not a fun job I can assure you :(

http://s595.photobucket.com/user/Slipstreamperformance1/media/P3200341_zpsb13d0ddd.jpg.html" rel="nofollow">

http://s595.photobucket.com/user/Slipstreamperformance1/media/P3200340_zps934847e0.jpg.html" rel="nofollow">

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: MarkE
Date Posted: 15 Apr 2013 at 9:52pm
Originally posted by yknot yknot wrote:


Keep the pics comming, looking great. I have just placed order for my plans so they should be here soon.


Good man! what boat?

Originally posted by Tagit Tagit wrote:

Looking very fine Mark. Love to watch these projects. Are the sheets secured to the b<span style=": rgb251, 251, 253;">ulkheads and longitudinals with any temporary fastenings (couldn't spot any in the pics) or are they just glued?</span>


Yeah mate, just screwed where needed. all screws removed before glassing

Originally posted by Telecaster Telecaster wrote:

Looks great, that hard chine should keep the spray down as well.

Are you going to finish it as a centre console? Or cabin?

What sort of glue are you using to tack everything together? Is it a commercial glue or are you adding something (wood flour or similar) to epoxy? Will you tape the seams than cloth over the whole hull?

Sorry for all the questions, I want to build one some day soon. Need to send the missus back to work first.


Centre console mate - im a fair weather fisherman [D]
Im using West system Epoxy, you can buy filler and fairing powders to thicken it up. Seams are taped on the inside, outside is just overlapped on the chines and keel.







-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: wetdream
Date Posted: 16 Apr 2013 at 8:37am
Man that's cool...could you maybe hurry up and get some more done I'm loving the up datesThumbs Up

-------------
Like us on: facebook/stanleysigns.com


Posted By: yknot
Date Posted: 16 Apr 2013 at 5:57pm
[/QUOTE]

Good man! what boat?

It a bit smaller than yours, have gone for the "Bateau - Flat Skiff 12". Project Brief - is for my two boys to make their first boat (going to try and let them do it all) and be able to use the 2 HP motor to get out and play.

-------------
Those that say it can't be done are being overtaken by those doing it.


Posted By: J-D
Date Posted: 17 Apr 2013 at 6:38pm
Originally posted by wetdream wetdream wrote:

Man that's cool...could you maybe hurry up and get some more done I'm loving the up datesThumbs Up

Totally agree . . . have this thread saved under my favourites Thumbs Up


Posted By: MarkE
Date Posted: 18 Apr 2013 at 11:03am
Originally posted by D J D J wrote:

Originally posted by wetdream wetdream wrote:

Man that's cool...could you maybe hurry up and get some more done I'm loving the up datesThumbs Up


Totally agree . . . have this thread saved under my favourites Thumbs Up


I'd love to get stuck in - seems theres always other jobs that need doing though. Should get the last of the glueing finished inside the boat tonight, exterior glassing not far off now

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Jet_ski_fisher
Date Posted: 18 Apr 2013 at 11:57am
You using one sheet per side or just drape one big sheet over it?

-------------
http://www.legasea.co.nz" rel="nofollow">
MH... Catch measure release...<*))))<


Posted By: MarkE
Date Posted: 18 Apr 2013 at 12:22pm
Will be running the cloth the length of the hull, with 3 lengths per side (2 layers on the bottom, 1 layer on the topsides) Overlaps on the chine and keel.

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Jet_ski_fisher
Date Posted: 18 Apr 2013 at 4:26pm
That other boat i was looking at diy and putting more cloth on the bottom for strength and the sides. 10 years should have it built lol...good build you having there...

-------------
http://www.legasea.co.nz" rel="nofollow">
MH... Catch measure release...<*))))<


Posted By: MarkE
Date Posted: 22 Apr 2013 at 8:33pm
Glassing is now underway :)

http://s595.photobucket.com/user/Slipstreamperformance1/media/P3270349_zps6939b75d.jpg.html" rel="nofollow">

http://s595.photobucket.com/user/Slipstreamperformance1/media/P3270351_zpsef45e5d7.jpg.html" rel="nofollow">

http://s595.photobucket.com/user/Slipstreamperformance1/media/P3270354_zpsb9a97752.jpg.html" rel="nofollow">

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Jet_ski_fisher
Date Posted: 22 Apr 2013 at 10:50pm
I think it's ounce cloth if so what ounce cloth are you using?

-------------
http://www.legasea.co.nz" rel="nofollow">
MH... Catch measure release...<*))))<


Posted By: MarkE
Date Posted: 22 Apr 2013 at 11:00pm
Im using 450 gram Double Bias (12 ounce)

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: J-D
Date Posted: 02 May 2013 at 5:30pm
Anymore Progress Mark?


Posted By: Don18025
Date Posted: 02 May 2013 at 8:07pm
Mark is doing a really good job and I enjoy his updates.
We are obviously all wooden boat freaks.....that why we are following Mark's craftsmanship.
In between his postings take a good look at this blog site of some great woodys.
http://waitematawoodys.com/about/
enjoy the histories of many the great boats on the water.



Posted By: J-D
Date Posted: 02 May 2013 at 9:08pm
CHeers Don Thumbs Up


Posted By: MarkE
Date Posted: 02 May 2013 at 9:36pm
Hull is fully glassed now. Next up are the strakes..........No pics atm sorry, camera died on me :(

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Tipper
Date Posted: 03 May 2013 at 7:42am
are planing strakes optional??


-------------
Please make sure you have the full 'witty' Plug-In installed on your Internet Browser, or the default 'half-witty' output may affect your profile


Posted By: MarkE
Date Posted: 03 May 2013 at 11:22am
Not optional, although I think the hull would still perform fine without them.

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: daveo
Date Posted: 03 May 2013 at 11:35am
looking good MarkE, Have been following this with great interest

Would be a great sense of achievment fishing out of your own boat you built from scratch


-------------
http://www.legasea.co.nz" rel="nofollow">


Posted By: MarkE
Date Posted: 05 May 2013 at 1:17pm
http://s595.photobucket.com/user/Slipstreamperformance1/media/P5050357_zpsb2dd64db.jpg.html" rel="nofollow">

http://s595.photobucket.com/user/Slipstreamperformance1/media/P5050359_zpse14152e2.jpg.html" rel="nofollow">

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Miss Lidgard
Date Posted: 07 May 2013 at 8:37pm
Originally posted by Don18025 Don18025 wrote:

Mark is doing a really good job and I enjoy his updates.
We are obviously all wooden boat freaks.....that why we are following Mark's craftsmanship.
In between his postings take a good look at this blog site of some great woodys.
http://waitematawoodys.com/about/
enjoy the histories of many the great boats on the water.


Great website right there, thanks Don.  Was a surprise to see my mistress featured too, along with another old photo that I didn't know existed.  I must get onto updating the diaries with the happenings over the past summer....


Posted By: MarkE
Date Posted: 27 May 2013 at 5:03pm
progress has slowed somewhat, have managed to get the strakes hot glued in position now though...

http://s595.photobucket.com/user/Slipstreamperformance1/media/P5270382_zps5345e0f3.jpg.html" rel="nofollow">
http://s595.photobucket.com/user/Slipstreamperformance1/media/P5270380_zpsa57162f7.jpg.html" rel="nofollow"> http://s595.photobucket.com/user/Slipstreamperformance1/media/P5260378_zpse6f1309a.jpg.html" rel="nofollow">



-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Jet_ski_fisher
Date Posted: 27 May 2013 at 5:36pm
How come the strakes are not put on first before the glass. or is this so you can do the rest of the glassing as one piece

-------------
http://www.legasea.co.nz" rel="nofollow">
MH... Catch measure release...<*))))<


Posted By: MarkE
Date Posted: 27 May 2013 at 10:49pm
The only reason I can think of is that if the strakes were damaged the water wouldn't get into the hull proper. The strakes will have a layer of 450g DB over them also so its going to be a very strong hull :)

-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Jet_ski_fisher
Date Posted: 28 May 2013 at 12:00am
Ahh i see good thinking :) now i know why thank you :)

-------------
http://www.legasea.co.nz" rel="nofollow">
MH... Catch measure release...<*))))<


Posted By: Falco
Date Posted: 28 May 2013 at 4:25am
Awesome Mark, really impressive!

-------------
as dead as dead is


Posted By: kaveman
Date Posted: 28 May 2013 at 7:53am
Nice job on the fibreglassing MarkThumbs Up


-------------
www.kavemantackle.co.nz


Posted By: Thirstyhustler
Date Posted: 29 May 2013 at 7:06pm
Originally posted by MarkE MarkE wrote:

The only reason I can think of is that if the strakes were damaged the water wouldn't get into the hull proper. The strakes will have a layer of 450g DB over them also so its going to be a very strong hull :)

Also makes it a lot easier to glass the hull due to the fact you dont have all sorts of corners to go over. if you tried to glass over the whole lot you have air bubblesand bridges in the glass everywhere to chase out.



Posted By: MarkE
Date Posted: 22 Jul 2013 at 5:21pm

Very slow progress as of late, work and cold winter days have slowed things down...
I have finished the strakes though, just need to glass them and we're all set for the fun that is Fairing  :D  :D

http://s595.photobucket.com/user/Slipstreamperformance1/media/P7220416_zps72d2d1e1.jpg.html" rel="nofollow">

http://s595.photobucket.com/user/Slipstreamperformance1/media/P7220409_zps1649193e.jpg.html" rel="nofollow">

http://s595.photobucket.com/user/Slipstreamperformance1/media/P7220419_zps998ce054.jpg.html" rel="nofollow">



-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: otdrmn
Date Posted: 22 Jul 2013 at 9:45pm
be pleased your fairing in winter, I did mine in the heat of summer and got a fair bit of chaffing - mind you from that we did name the boat "ButRot"

-------------
The 4 R's ~ Rods, Reels, Rifles, Rooting


Posted By: MarkE
Date Posted: 24 Jul 2013 at 7:12pm
^ so true, downside is it takes a bit longer for the fairing compound to go off.

Strakes glassed...

http://s595.photobucket.com/user/Slipstreamperformance1/media/P7240419_zps354568a1.jpg.html" rel="nofollow">


-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Tagit
Date Posted: 24 Jul 2013 at 7:22pm
Hey Mark - did you consider laying a couple of strips of Kevlar on the keel? If you ever go near the beach you might appreciate it.


Posted By: TOSF
Date Posted: 25 Jul 2013 at 3:06am
Great Job, really enjoy this.

-------------
http://www.facebook.com/TonyOrtonSportFishingOffshoreAdventures
www.offshoreadventures.net
http://www.legasea.co.nz" rel="nofollow">


Posted By: snapper14
Date Posted: 30 Jul 2013 at 3:11pm
Originally posted by TOSF TOSF wrote:

Great Job, really enjoy this.

What he said Thumbs Up


-------------
If a man goes nowhere and theres no one there to see him, did he ever leave?

Munter - Outrageous Fortune.


Posted By: Don18025
Date Posted: 02 Aug 2013 at 8:26am
Not to many days before the rollover party!
Great project and I am enjoying following it.


Posted By: Sambo888
Date Posted: 04 Aug 2013 at 7:13pm
really nice looking hull sweet job dude


Posted By: cosmo
Date Posted: 04 Aug 2013 at 9:18pm
looking forward to seeing her finished,loving yr work to date


-------------
i just want to go fishing..........amd ignore all my adult problems


Posted By: segador
Date Posted: 04 Aug 2013 at 10:06pm
like a pro


Posted By: MarkE
Date Posted: 05 Aug 2013 at 2:20pm
Thanks guys :)

David - I had actually thought about that funnily enough but figured im going to be really careful if its ever run up on to the beach anyway. If the worse did happen its a lot easier repairing glass as apposed to Kevlar...


-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: J-D
Date Posted: 17 Sep 2013 at 1:43pm
Any updates Mark? Look bloody awesome Thumbs Up


Posted By: MarkE
Date Posted: 11 Oct 2013 at 10:18pm


Hull is now faired, just sanding back the first coat of high build now. will probably do one more coat of high build, primer then topcoat. http://s595.photobucket.com/user/Slipstreamperformance1/media/PA100441_zps104ec4c2.jpg.html" rel="nofollow">

http://s595.photobucket.com/user/Slipstreamperformance1/media/PA100440_zps902442c7.jpg.html" rel="nofollow">


-------------
Sea Strike 18' Centre Console - Under Construction.... http://www.fishing.net.nz/asp_forums/sea-strike-18-build-thread_topic87723_page1.html" rel="nofollow - Build Thread here


Posted By: Norseman
Date Posted: 12 Oct 2013 at 9:49am
Outstanding job! Thumbs Up

-------------
"Nothing is so strong as gentleness, nothing so gentle as real strength." St. Francis de Sales



Print Page | Close Window
