Hydrofoil or 4 Blade Prop

  New Posts New Posts RSS Feed - Hydrofoil or 4 Blade Prop Forum Search Events FAQ FAQRegister RegisterLogin Login

 Post Reply Post Reply
Post Options Post Options   Likes (0) Likes(0)   Quote SpearPoint Quote  Post ReplyReply Direct Link To This Post Topic: Hydrofoil or 4 Blade Prop
    Posted: 24 Jul 2022 at 9:54am
SpearPoint View Drop Down
Silver
Silver


Joined: 02 Aug 2016
Status: Offline
Points: 110
Hey everyone,

I’m tossing up between trying some new props or fitting a hydrofoil and was wondering what the general consensus would be to try first.

I’ve got a Haines 163c with a 90 Honda on the back and currently underway she’s a bit ass heavy. Now I am aware that my boat was never meant for an outboard this heavy so I should mention that I’ve put a full floatation pod on that follows the hull to support the weight of the motor and increase the planning length.

I usually throw all my gear and totes in the cabin and can get it balanced pretty good when up and running but she doesn’t plane at low speed well and I get a lot of bow lift out of the hole.

I’m chasing more stern lift and lower planning speed.

My current prop is a 13inch 15p 3 blade stainless and gets me to 34knots at 6000 rpm. I’m pretty happy with how it performs but was thinking a 4 blade would get me more lift. But god dam are props are expensive right now or have they always been $1k plus?

So I’m thinking a hydrofoil could be an option or is that just patching a problem I should solve at the prop? I also don’t want to sacrifice much top speed as I do a lot of bar crossings, so any thoughts on what would slow me down least would be helpful too.

Thanks in advance guys.

Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Schampy Quote  Post ReplyReply Direct Link To This Post Posted: 24 Jul 2022 at 4:41pm
Schampy View Drop Down
Platinum
Platinum


Joined: 14 Aug 2014
Status: Offline
Points: 1968
Have used a hydrofoil twice over the years ... Once arse heavy, once slightly underpowered/cavitating and it worked both times.
Its where I would start. They aint that expensive and solve a lot of issues.
Back to Top
Post Options Post Options   Likes (1) Likes(1)   Quote OneWayTraffic Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2022 at 3:05pm
OneWayTraffic View Drop Down
Platinum
Platinum
Avatar

Joined: 19 Jan 2013
Location: Amberley
Status: Offline
Points: 2832
If your flotation pod is an extension from the transom with the outboard hanging off of it, then it will not improve trim over having the outboard directly on the transom. Quite the opposite. The pod moves the 90hp further back, over a longer lever arm. It might be better than a non flotation pod, but not as good as being directly bolted to the transom.

Photos might help.
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Pcj Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2022 at 4:12pm
Pcj View Drop Down
Titanium
Titanium
Avatar

Joined: 27 Nov 2019
Location: papakura
Status: Offline
Points: 4107
Originally posted by OneWayTraffic OneWayTraffic wrote:

If your flotation pod is an extension from the transom with the outboard hanging off of it, then it will not improve trim over having the outboard directly on the transom. Quite the opposite. The pod moves the 90hp further back, over a longer lever arm. It might be better than a non flotation pod, but not as good as being directly bolted to the transom.

Photos might help.
moving the balance further aft,counter with weight in bow,hydro may help ,trim motor up slightly(wedges)
"Times up"
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote SpearPoint Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2022 at 5:30pm
SpearPoint View Drop Down
Silver
Silver


Joined: 02 Aug 2016
Status: Offline
Points: 110
Wedges aren't a bad idea actually, would get me more negative trim I suppose.

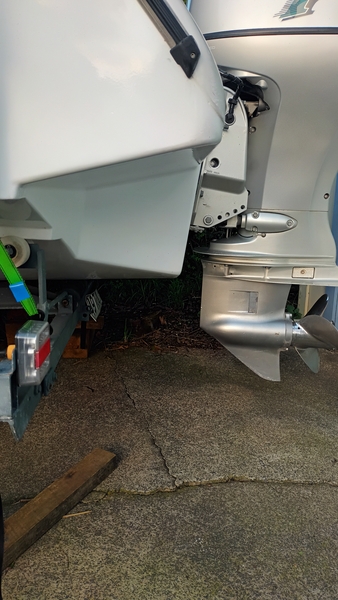

Picture of the pod below. Totally get the COG points OneWayTraffic just trying to get it working better.



Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Pcj Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2022 at 5:36pm
Pcj View Drop Down
Titanium
Titanium
Avatar

Joined: 27 Nov 2019
Location: papakura
Status: Offline
Points: 4107
wedges might bring motor 90 degrees to transom then might get more till value
"Times up"
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote OneWayTraffic Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2022 at 8:27pm
OneWayTraffic View Drop Down
Platinum
Platinum
Avatar

Joined: 19 Jan 2013
Location: Amberley
Status: Offline
Points: 2832
Looks like that pod is well integrated into the hull. Not a bolt on extra. I'd try the hydrofoil and 4 blade ideas, but first I'd just get some extra ballast and put it up front. 25L of water 3m in front of the COG would offset 150kg 0.5m back.


Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Kandrew Quote  Post ReplyReply Direct Link To This Post Posted: 27 Jul 2022 at 9:12pm
Kandrew View Drop Down
Titanium
Titanium


Joined: 16 Apr 2012
Status: Offline
Points: 4176
I wouldn’t think that motor would be to heavy for that boat. Have you checked the engine height.

Search engine height on this site, there’s plenty of posts on here on how to setup the engine properly.
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote SpearPoint Quote  Post ReplyReply Direct Link To This Post Posted: 28 Jul 2022 at 10:22am
SpearPoint View Drop Down
Silver
Silver


Joined: 02 Aug 2016
Status: Offline
Points: 110
Yea ok, I'll try some more ballast up in the anchor locker and see how that goes. Going to buy on of those bolt less hydrofoils and give that a try first.

With regards to engine height, how would raising it get me more stern lift?

I'm on the lowest hole now so have scope to go up but the cav plate sits out of the water perfectly when under way and I'm already making max revs so I hadn't given the engine height much thought. I assumed raising it when I'm ass heavy would have just caused porpsing? Or have I got that wrong?
Back to Top
Post Options Post Options   Likes (1) Likes(1)   Quote kimber7wsm Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2022 at 7:02am
kimber7wsm View Drop Down
Gold
Gold


Joined: 28 Nov 2020
Status: Offline
Points: 574
My gut feeling is you will end up with a 4 blade. that will be the best solution to your problems
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote SpearPoint Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2022 at 11:07am
SpearPoint View Drop Down
Silver
Silver


Joined: 02 Aug 2016
Status: Offline
Points: 110
Yea I think you're right. That seems like the proper solution long term.

Anyone want to take a punt on what prop I need? I assume I go down in pitch for a 4 blade
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Kandrew Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2022 at 6:36pm
Kandrew View Drop Down
Titanium
Titanium


Joined: 16 Apr 2012
Status: Offline
Points: 4176
My 6.0mtr tinny was a bit ass heavy so I went to a 4 blade, gave me quite a bit more lift and stability, get up and holds the plane better.

Down side lost a bit of top end and not as much control in reverse.

We did the numbers on which prop, but I was lucky my outbourd shop had a couple of different sizes and we went for the next size up because it just cruised better and gave us a bit more bite. Well recommend
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Pcj Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2022 at 6:46pm
Pcj View Drop Down
Titanium
Titanium
Avatar

Joined: 27 Nov 2019
Location: papakura
Status: Offline
Points: 4107
Originally posted by Kandrew Kandrew wrote:

My 6.0mtr tinny was a bit ass heavy so I went to a 4 blade, gave me quite a bit more lift and stability, get up and holds the plane better.

Down side lost a bit of top end and not as much control in reverse.

We did the numbers on which prop, but I was lucky my outbourd shop had a couple of different sizes and we went for the next size up because it just cruised better and gave us a bit more bite. Well recommend
not much control in reverse?? mine on the v13 took a while plane but bit in  in reverse,would I have another 4 bladder YES.
"Times up"
Back to Top
Post Options Post Options   Likes (0) Likes(0)   Quote Bigfishbob Quote  Post ReplyReply Direct Link To This Post Posted: 29 Jul 2022 at 9:19pm
Bigfishbob View Drop Down
Platinum
Platinum


Joined: 19 Aug 2004
Location: Hamilton
Status: Offline
Points: 2885
THe Permatrim Hyrdofoil will get you there, the Plastic versions like the SE400 will get you there as well.

4 blade props are good for extra stern lift but you lose about 3-4knots of top end speed, and sometime you lose a bit of control for reversing.

There are high stern lift three blade props available too. I now use a Merc Enertia Prop and it has better Stern lift than my 4 blade revolution prop I used to run.

In your situation a permatrim is probably your best and cheapest bet. Not a bde idea to check your engine height while you're at it. Correctly setting that can also help with ride quality.
www.waikatosportfishing.co.nz
